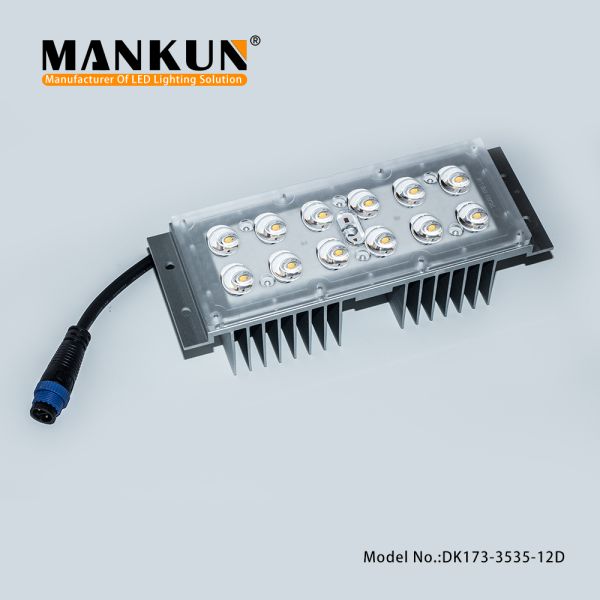

2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions

Brand Name : mankun

Model Number : DK173

Certification : ce, RoHS

Place of Origin : Guangdong, China

MOQ : 1000 Sets

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200,000 PCs per month

Delivery Time : 5-10 work days

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

Application : Street Lamps

Light source : 3535 White SMD LED

Product name : Injection Led Module

Chip material : LED Chip Brand Can Be Customized

Color temperature : 2700-3000K/6000-6500K

Led qty : 12pcs

Voltage : DC36V

Viewing angle(°) : 120

Contact Now

2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions

Zhaga Pcb Led Light Module 2X6 LED Street Light Lamp For Outdoor Module

Injection LED Module description
  • High efficiency outdoor modules
  • Suitable for harsh and humid outdoor conditions
  • Huge performance temperature range from -40 ... +105 °C
  • Surge tested (+/- to earth) 6 kV with Tridonic LED driver
  • For use with IP6x lenses (e.g. LEDiL Strada IP-2x6)
  • Push-in terminals for simple and quick wiring
  • Long lifetime up to 100,000 hours
  • 5 years guarantee

Optical properties

  • Colour temperatures 3,000, 4,000 and 5,000 K
  • Useful luminous flux 3,926 lm at Irated and tp = 25 °C
  • Efficacy of the LED module 162 lm/W at Irated and tp = 25 °C
  • High colour rendering index CRI > 80
  • Small luminous flux tolerances

Mechanical properties

  • Module dimension 45 x 146 mm
  • Installation of the module together with lens in the luminaire by means of an M3 screw
Approval marks: 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions 2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions
Technical data
Beam characteristic 120°
Ambient temperature range -40 ... +80 °C
tp rated 75 °C
tc 105 °C
Irated 700 mA
Imax 1,200 mA
Max. permissible LF current ripple 1,320 mA
Max. permissible peak current 2,000 mA / max. 10 ms
Max. working voltage for insulation 370 V
Max. working voltage for insulation with lens 670 V
Insulation test voltage 1.74 kV
CTI of the printed circuit board > 600
ESD classification Severity level 4
Risk group (IEC 62471) RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
Classification acc. to IEC 62031 Built-in
Type of protection IP00
Lumen maintenance L70B50 100,000 h
Guarantee 5 Year(s)

Specific technical dataFilter
Type① Photo­metric code Useful luminous flux at tp = 25 °C② Expected luminous flux at tp rated ③ Typ. forward current Min. forward voltage at tp = 75 °C Max. forward voltage at tp = 25 °C Typ. power con­sump­tion at tp = 75 °C ④ Efficacy of the module at tp = 25 °C Expected efficacy of the module at tp rated Col­our ren­der­ing in­dex CRI
Operating mode NM

AL15549

AL16197

 830/579 3,747 lm 3,528 lm 700 mA 32.4 V 36.1 V 24.28 W 154 lm/W 149 lm/W > 80
840/579 3,888 lm 3,668 lm 700 mA 32.4 V 36.1 V 24.28 W 160 lm/W 155 lm/W > 80
850/579 3,926 lm 3,696 lm 700 mA 32.4 V 36.1 V 24.28 W 162 lm/W 157 lm/W > 80
①HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output.
②Tolerance of useful light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %.
③Tolerance of expected light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %. Based on calculation.
④Tolerance of power consumption Pon ± 10 %. Measurement uncertainty ± 5 %.
