30W 40W LED Street Light Module SMD 3030 Self Developed Patent Lens

Product Categories
Guangzhou Mankun Electronic Co., Ltd.
Contact Now

30W 40W LED Street Light Module SMD 3030 Self Developed Patent Lens

Brand Name : ManKun

Model Number : 16308

Certification : ROHS UL

Place of Origin : China

MOQ : 1000

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10000 SET /Month

Delivery Time : 10-15 work days

Packaging Details : Single item / 31X8X6 cm / 0.500 kg

Input Voltage(V) : 30VDC

Light source : 40LEDs 3030

Cri (ra>) : >70 80

Ip rating : IP66/IP67/IP65

Item type : led Street Lights

Led light source : SMD3030 40pcs

Contact Now

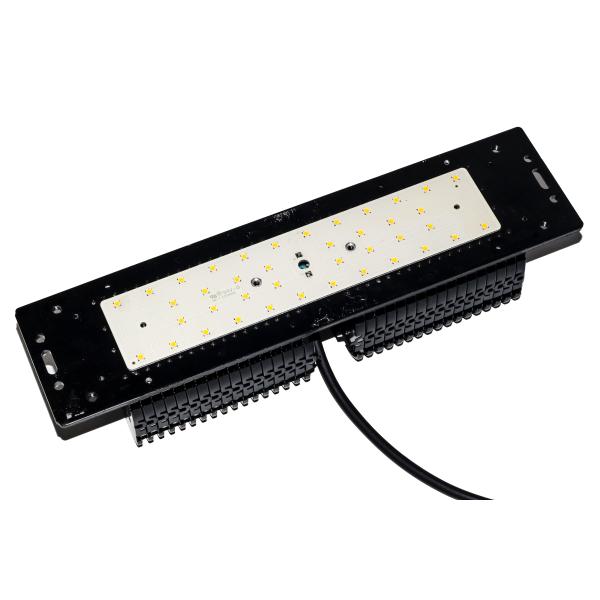

SMD 3030 Self-developed patent lens 30W 40W Led street Light Module

LED PCB Product feature

Type AL16308

- Dimension Aluminum PCB 222*47mm - PCB Thickness 1.6mm

- Smd 3030 LED 40W

- Input Voltage 30V

- Beam characteristic 120º

- Color temperatures (5000 K)

- CRI>70

- LED module efficiency of up to 150LM/W

- Excellent color consistency of 5 SDCM

- Long life-time: 50,000 hours

LED Module Specification

Electric Data
Model DK252-30W-16308
Power 30W
Input 24V/1A
27V/0.83A
30V/0.63A
Photometric Specifications
LEDs 3030 LED
CRI >70(>80,>90 optional)
Luminous Efficiency 150lm/w
Luminous Flux 4500lm
CCT 2800K/4000/5000K/5500K
Beam Angle 24°,36°,60°,90°,145x100°,150x70°,150x85°,150x80° Vertical
LED Qty. 40pcs(30V)
Mechanical Specifications
IP Rate IP67
Working Environment -40℃~50℃,20%~90% RH
Storage Temperature -40℃~85℃,10%~90% RH
Body Material Aluminum
Lens Material PC
Connector Size M15
Wire Length 200mm/300mm optional
Module Size(mm) 300*75*50mm
ModuleSize(inch) 11.81*2.95*1.97in
Lifespan >50,000 Hours
Packing Information
Module Dimension 300x70x47mm
40PCS/CTN 525*330*365mm
N.W. 0.42KG/pcs

Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.

Warranty terms

1. 5 years warranty.

2. Under the terms of this warranty, if the product has a failure occurs under normal usage within the warranty period, Weixiang will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other does not follow our instruction, Weixiang will provide paid maintenance within the warranty period.

4. SAA/CE/RoHS/TUV/UL
